海德汉长度计

阅读数:56

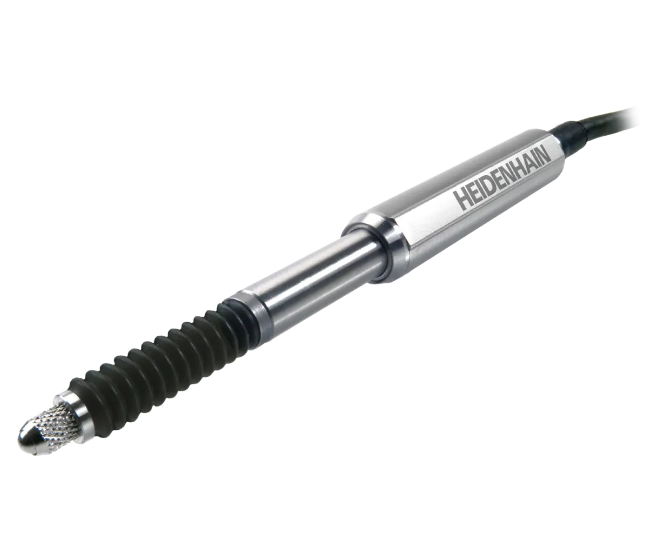

SPECTO系列

参 数：

测量站和多点测量装置的增量式长度计

  • 优异的系统精度：±1 µm
  • 坚固耐用
  • 结构紧凑，可安装在有限空间中
  • 支持多种测量杆驱动方式
  • 长寿命的密珠导轨
  • 测量范围达30 mm
  • 接口：1 VPP，TTL
  • 防护等级达IP67
技术文档样本下载
A-A+
说 明

优异的耐用性和抗污性能

优异的耐用性确保这款长度计工作可靠，包括在严重振动和冲击负载作用时。这些长度计配耐化学腐蚀和耐热的波纹管，并配防尘和防水设计，可在环境恶劣的常规车间中使用。

长寿命的密珠导轨

SPECTO系列长度计采用密珠导轨，即使被大横向力作用和长时间使用，测量杆仍保持可靠伸出和缩回：密珠导轨的测试周期数至少达到6000万次。

不限安装方向

SPECTO系列长度计不限制安装方向。可选夹紧套，确保夹持安全和导向平稳。

多点测量装置的理想选择

这些长度计结构紧凑，正面厚度小于15 mm。可在有限空间中使用多个这款长度计，同时测量多个检测点。



ID number

Product

Protection rating

Electrical connection

ST 3008 02S09 7K A ~11µApp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 9-pin

ST 3008 02S09 7K R ~11µApp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 9-pin

ST 3088 02S12 7K A ~1Vpp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 12-pin

ST 3088 02S12 7K R ~1Vpp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 12-pin

ST 3078 93S15 7K A TTLx5 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K A TTLx10 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K A TTLx5 50.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K A TTLx10 25.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx5 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx10 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx10 50.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx5 50.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx10 25.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K R TTLx5 200.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3007 02S09 7K A ~11µApp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 9-pin

ST 3087 02S12 7K A ~1Vpp 0.00 .. 01 .. 01 5 mm 360 1.50 19 64 1.0

IP64 (EN60529)

Connector M23, male, 12-pin

ST 3077 93S15 7K A TTLx5 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3077 93S15 7K A TTLx10 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 3078 93S15 7K A TTLx10 50.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

ST 1277 93S15 7K R TTLx10 100.00 OT 01 .. 01 5 mm 90 1.50 19 64 1.0

IP64 (EN60529)

D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin
