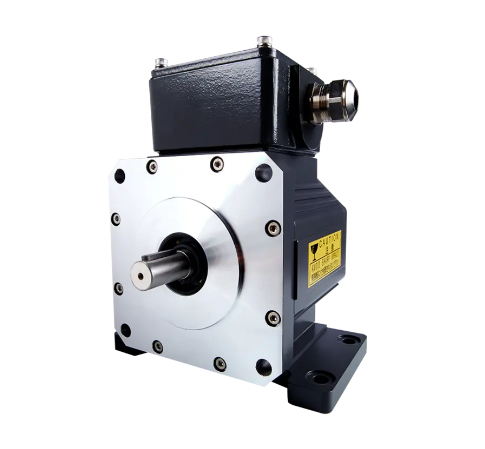

外部旋转编码器 ROD 1900系列

1043373-01

ROD 1930 600 7TK06-AU 1 0.00 .. 09B88B 66 01 0232 .. RV HTLs 20 01 ..

Connecting terminal with screw M4, 6-pin

HTLs Square-wave signal, HTL-Level, single-ended output

1043373-02

ROD 1930 600 7TK06-TD 1 0.00 .. 09B88B 66 01 0232 .. .. HTL 20 01 ..

Connecting terminal with screw M4, 6-pin

HTL Square-wave signals, HTL levels

1043377-01

ROD 1930 600 7TK06-AU 1 0.00 .. 0KA88B 66 01 0232 .. RV HTLs 20 01 ..

Connecting terminal with screw M4, 6-pin

HTLs Square-wave signal, HTL-Level, single-ended output

1043377-02

ROD 1930 600 7TK06-TD 1 0.00 .. 0KA88B 66 01 0232 .. .. HTL 20 01 ..

Connecting terminal with screw M4, 6-pin

HTL Square-wave signals, HTL levels

1043377-03

ROD 1930 1024 7TK06-TD 1 0.00 .. 0KA88B 66 01 0232 .. .. HTL 20 01 ..

Connecting terminal with screw M4, 6-pin

HTL Square-wave signals, HTL levels

689888-21

ROD 1933 100 01L70-BA 1 0.70 76 09C88A 66 01 .. .. .. HTLs4-C 53 01 ..

free cable end with tinned litz wires (70 mm) and twisted + tinned shield

HTLs4-C Square-wave signals, discrete circuit, HTL-Level, single-ended output, bypass-capacitors to frame ground
