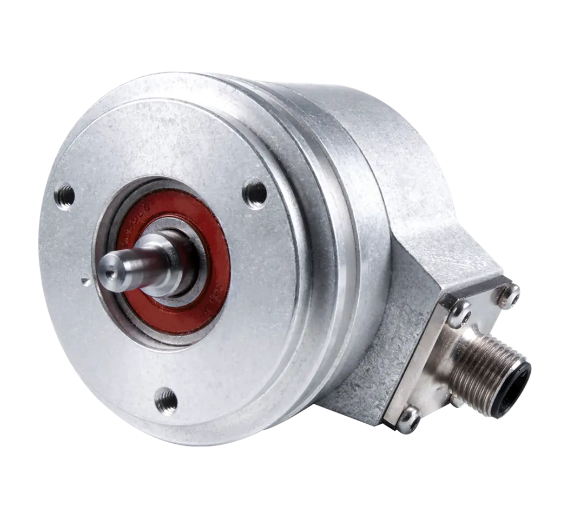

外部旋转编码器 ROC/ROQ 400系列

1042524-01

ROQ 425 2048 27S17-E0 R 0.00 .. 03D39A 66 01 .. KS G SSI41Tb 73 01 ..

IP66 (EN60529)

SSI41Tb serial output signals, word length 25 bits without parity, ascending values clockwise, with datum and rotational direction reversal by pin, cyclic position value formation < 5 µs, TTL level

1042524-02

ROQ 425 2048 27S17-E0 R 0.00 .. 03D39A 66 01 .. KS G SSI41Ta 73 01 ..

IP66 (EN60529)

SSI41Ta serial output signals, word length 25 bits without parity, ascending values clockwise, with datum and rotational direction reversal by pin, cyclic position value formation < 5 µs, TTL level (2-fold interpolation)

1042526-01

ROQ 425 512 27S12-RC R 0.00 .. 03D39A 66 01 .. KS G SSI41Hb 20 01 ..

IP66 (EN60529)

SSI41Hb serial output signals, word length 25 bits without parity, ascending values clockwise, with datum and rotational direction reversal by pin, cyclic position value formation < 5 µs, HTL level

1042526-02

ROQ 425 512 27S12-RC R 0.00 .. 03D39A 66 01 .. KS G SSI41Ha 20 01 ..

IP66 (EN60529)

SSI41Ha serial output signals, word length 25 bits without parity, ascending values clockwise, with datum and rotational direction reversal by pin, cyclic position value formation < 5 µs, HTL level (2-fold interpolation)

1042529-01

ROQ 425 2048 27S17-58 R 0.00 .. 03D39A 66 01 .. KS D EnDatTb 73 01 ..

IP66 (EN60529)

EnDatTb Synchronous serial EnDat with square-wave signal, TTL level

1065028-01

ROQ 425 512 27S12-TX R 0.00 .. 03D39A 66 01 .. KS G SSI41Ha 20 01 ..

IP66 (EN60529)

SSI41Ha serial output signals, word length 25 bits without parity, ascending values clockwise, with datum and rotational direction reversal by pin, cyclic position value formation < 5 µs, HTL level (2-fold interpolation)

1081303-02

ROQ437F 2048 5XS08-C4 R 0.00 .. 73A01C 64 01 .. .. D Fanuc06 37 01 ..

IP64 (EN60529)

Fanuc06 Serial interface FANUC ALPHAi

1081304-02

ROQ437F 2048 5XS08-C4 R 0.00 .. 01J39A 64 01 .. .. D Fanuc06 37 01 ..

IP64 (EN60529)

Fanuc06 Serial interface FANUC ALPHAi

1081305-02

ROC425F 2048 5XS08-C4 R 0.00 .. 73A01C 64 01 .. .. D Fanuc05 37 01 ..

IP64 (EN60529)

Fanuc05 Serial interface FANUC ALPHA/ALPHAi

1081306-02

ROC425F 2048 5XS08-C4 R 0.00 .. 01J39A 64 01 .. .. D Fanuc05 37 01 ..

IP64 (EN60529)

Fanuc05 Serial interface FANUC ALPHA/ALPHAi

1109254-01

ROC 413 512 27S17-58 A 0.00 .. 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-04

ROC 413 2048 27S17-58 A 0.00 .. 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-05

ROC 413 2048 27S17-58 R 0.00 .. 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-07

ROC 413 512 03S17-58 K 1.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-09

ROC 413 2048 01 -58 K 1.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-10

ROC 413 2048 03S17-58 K 1.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-11

ROC 413 2048 01 -58 K 5.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-12

ROC 413 2048 03S17-58 K 5.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-13

ROC 413 2048 03S17-58 K 5.00 02 01J01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set

1109254-23

ROC 413 512 03S17-58 K 5.00 02 73A01C 64 01 .. .. D EnDat01 37 01 ..

IP64 (EN60529)

EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set
